Illuminated Lettering Sydney

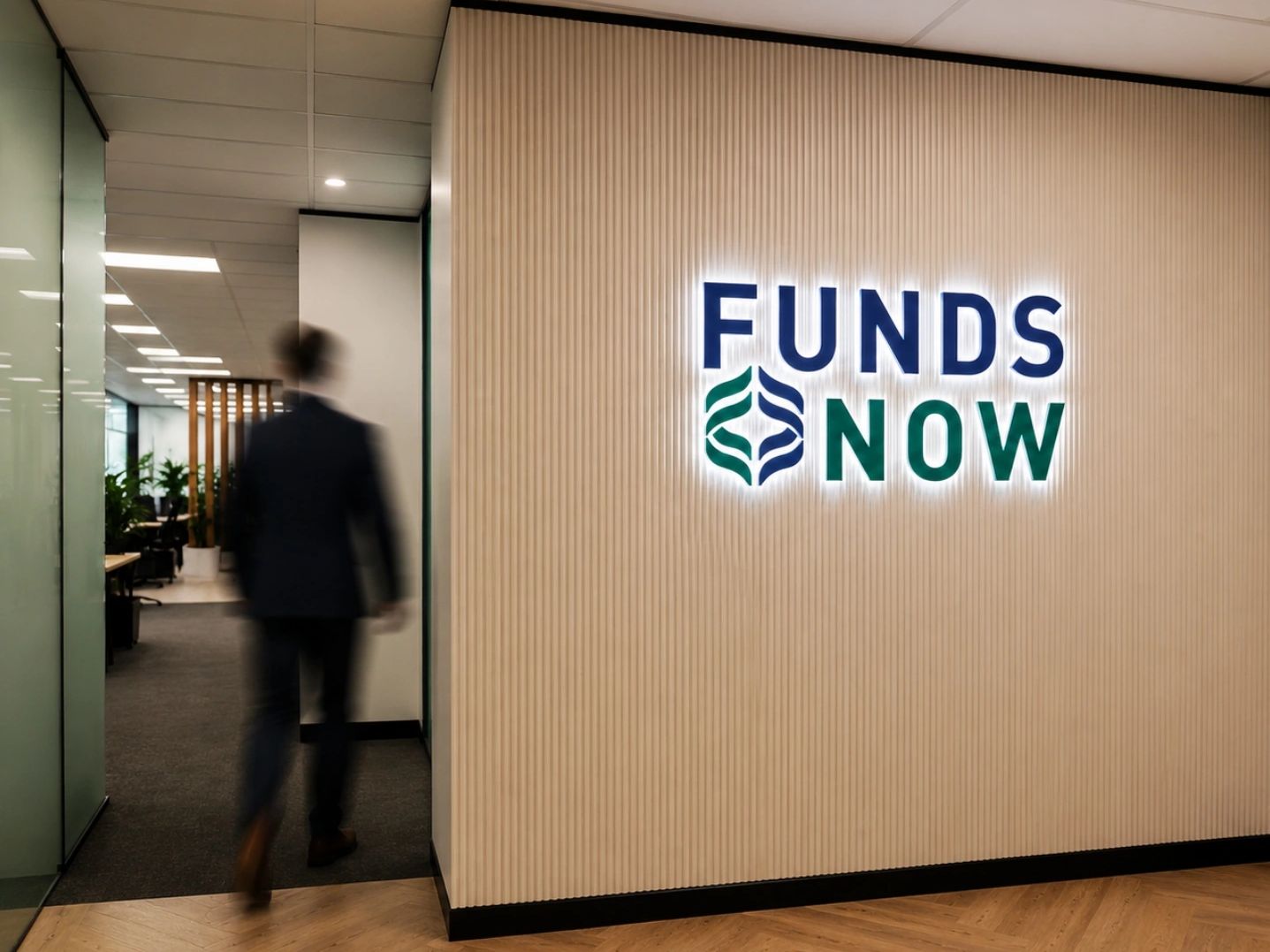

Halo-lit lettering, also called reverse-lit lettering, positions the LED illumination behind the individual letter or logo so light is projected onto the mounting surface. This creates a glow around the perimeter of the lettering and is particularly effective for architectural feature walls, reception areas and premium building signage.

Face-lit lettering allows illumination through the front face of the letter, creating stronger direct visibility and making it particularly suitable for shopfronts and external building signage.

Combination-lit lettering uses more than one lighting effect, such as an illuminated face combined with a rear halo.

Kellyville Signs designs and manufactures custom illuminated lettering in Sydney, with the lighting method selected according to the brand, viewing distance, installation surface, environment and desired visual effect.

The wall behind a halo-lit letter effectively becomes part of the lighting system.

LED light emitted from the rear of the letter reflects onto the mounting surface to create the visible halo. Surface colour, texture, reflectivity, letter stand-off distance and surrounding ambient light can therefore change how the finished illumination appears.

A smooth, light-coloured wall will generally reflect light differently from timber battens, dark cladding, stone, brick or heavily textured surfaces.

For this reason, Kellyville Signs considers both the illuminated letter and the architecture behind it when designing halo-lit signage rather than treating the lettering as an isolated product.

Yes, but the construction and lighting need to be designed specifically for the substrate.

Vertical timber battens, acoustic panels, textured walls and other architectural surfaces can interrupt the distribution of light behind illuminated letters. Mounting depth, fixing locations, cable routes and LED positioning therefore need to be considered before manufacture.

The ADCO illuminated logo and lettering produced by Kellyville Signs demonstrates how individually illuminated elements can be integrated with a timber batten feature wall while retaining the architectural character of the interior. Click to view in more detail!

There is no universal stand-off distance that produces the best halo. The appropriate distance depends on the letter depth, LED configuration, brightness, wall colour and texture, letter size and the width and softness of the halo required.

Moving an illuminated letter further from the wall can change the spread and diffusion of the reflected light, while positioning it closer can create a tighter lighting effect.

For bespoke illuminated lettering, Kellyville Signs determines the mounting arrangement as part of the signage design rather than applying one standard spacing to every project.

Yes. Individually fabricated 3D letters and logo elements can contain or conceal their own LED illumination and electrical components, depending on the design. This allows a logo or wordmark to appear as individual architectural elements rather than a conventional rectangular lightbox.

It is particularly effective for reception signage, corporate offices, medical practices, hospitality venues and premium commercial interiors where the signage needs to integrate with the interior architecture.

Often, yes. A logo does not necessarily need to be simplified into ordinary lettering. Individual shapes, symbols and typography can potentially be fabricated as separate three-dimensional illuminated elements.

However, very fine lines, tight internal spaces, small components and complex geometry can affect fabrication and illumination. Kellyville Signs assesses the original artwork and determines how the logo can be translated into a physical illuminated sign while maintaining the brand's proportions and visual identity.

Yes, because Kellyville Signs uses the same fabrication principles used for dimensional lettering can be applied to logos, symbols, emblems and other custom brand elements. This is particularly useful where the logo itself is more recognisable than the business name.

Kellyville Signs can combine custom illuminated logo elements with dimensional lettering to create one integrated signage installation.

Because the LED is only one part of the finished lighting effect.

The appearance of halo illumination is influenced by the distance between the letter and wall, LED placement, letter geometry, wall texture and colour, ambient lighting, surrounding architecture and viewing angle.

This is why specifying only an LED colour or brightness does not completely define how a halo-lit sign will look after installation. The letter, illumination, mounting system and surrounding architecture work together as one system.

Good illuminated lettering should produce intentional, relatively consistent illumination rather than obvious bright points caused by individual LEDs. LED selection, module spacing, internal letter depth, diffusion, positioning and the distance between the light source and illuminated or reflective surface all influence uniformity.

The appropriate construction varies according to whether the sign is face-lit, halo-lit or uses a combination lighting method. This is one reason the internal construction of illuminated letters matters just as much as the visible face.

 Yes, although there is a practical limit. As lettering becomes smaller or strokes become narrower, there is less internal space for LEDs, wiring, structural components and effective light diffusion. Extremely fine typography may therefore require modification, an alternative construction method or a different illumination technique.

Kellyville Signs assesses the actual artwork before recommending an illuminated lettering construction rather than assuming every logo can simply be converted into LED letters.

In many cases, yes. Custom illuminated lettering can be manufactured from supplied vector artwork rather than restricting a business to a catalogue of standard fonts.

However, extremely fine strokes, small counters, sharp details or tightly spaced elements may need technical assessment to determine whether they can be fabricated and illuminated reliably at the required size. This allows the manufacturing method to follow the brand identity wherever technically practical—not the other way around.

Depending on the application and design, illuminated lettering can incorporate materials such as acrylic, fabricated plastics, aluminium, steel and other architectural finishes.

Material selection affects much more than appearance. It can influence weight, fabrication method, durability, illumination, mounting requirements, achievable detail and cost. Kellyville Signs' illuminated lettering range is designed to allow the material, lighting method and fabrication technique to be selected around the project rather than forcing every brand into one standard letter construction.

Yes, provided the signage is engineered and manufactured for its intended environment. Interior illuminated lettering can prioritise architectural integration, refined finishes and controlled illumination. Exterior illuminated lettering must additionally account for weather exposure, fixing methods, electrical components, access for servicing and the characteristics of the building façade.

The construction specification should therefore be determined by where the sign will actually be installed, rather than using the same construction for every application.

Cable management should be considered during the design stage rather than after the letters have been manufactured.

Depending on the wall construction and project, electrical feeds may be routed through the substrate behind individual letters, through concealed mounting structures or using another planned cable pathway.

On architectural interiors in particular, early coordination between the sign manufacturer, builder, shopfitter and electrician can produce a significantly cleaner finished installation.

Ideally, before the feature wall or façade is completely finished.

Early signage coordination allows the project team to consider electrical feeds, access, fixing points, wall construction, backing requirements and cable concealment before finishes are closed.

For builders, architects and shopfitters, involving Kellyville Signs earlier can reduce the need for visible cabling, remedial work or compromises to the original signage design later in the fit-out.

Useful information includes the vector logo artwork, proposed sign dimensions, elevations or architectural drawings, wall construction and finish, installation height, available electrical provision, viewing distance and desired illumination style.

Providing this information early allows the signage manufacturer to assess fabrication, fixing, illumination and installation requirements before production begins. Kellyville Signs works with commercial project teams across Sydney to translate branding and architectural documentation into manufacturable illuminated signage.

It depends on the construction and design. Some illuminated signage systems require electrical connections to individual elements, while others can use concealed interconnections or mounting systems depending on the application. The electrical and mounting strategy should be determined before fabrication because it affects the wall penetrations, installation method and final appearance of the signage.

There isn't one white LED colour temperature that suits every project.

Warmer white illumination can complement timber, brass, stone and warmer interior palettes, while cooler or more neutral whites may suit contemporary commercial environments and particular brand aesthetics.

Ambient lighting also matters: an illuminated sign should be considered alongside the lighting already present in the building rather than selecting LED colour temperature in isolation.

Cameras respond to illuminated surfaces differently from the human eye. Exposure, shutter speed, white balance, surrounding ambient light and automatic phone-camera processing can make illuminated areas appear brighter, cooler, warmer or less uniform than they appear in person. This is particularly noticeable with halo illumination, where a camera may exaggerate bright areas while reducing subtle reflected light around the letter.

Architectural illuminated lettering is designed as part of the building or interior rather than simply attached as an advertising element. Letter depth, material, finish, lighting temperature, mounting distance, fixing visibility, surrounding surfaces and integration with other architectural finishes all contribute to the result.

For premium commercial environments, the objective is not simply to make a logo light up. It is to make the signage feel intentional within the architecture during the day and after illumination.

Kellyville Signs designs, manufactures and installs custom illuminated 3D lettering and logo signage for commercial projects across Sydney.

Our illuminated signage work includes halo-lit lettering, dimensional illuminated logos, reception signage, office signage and exterior building lettering for applications including corporate workplaces, medical practices, retail, hospitality and commercial buildings.

Projects are managed from design and fabrication through to installation, allowing the lettering, lighting, mounting method and architectural environment to be considered together.

Lead time for custom illuminated lettering depends on the design, letter size, materials, lighting method, quantity, finishing requirements and installation complexity. A straightforward set of illuminated 3D letters may have a different production timeframe from a large exterior building sign or a bespoke architectural logo requiring custom fabrication and complex installation.

Kellyville Signs manufactures illuminated signage locally in North West Sydney, allowing our team to manage the process from design and fabrication through to installation. Once we review your artwork, dimensions and installation requirements, we can provide a project-specific production timeframe.

For commercial fit-outs with fixed opening or handover dates, we recommend involving the signage team as early as possible so fabrication and electrical requirements can be coordinated with the broader project programme.

Yes. Kellyville Signs designs, manufactures and installs custom illuminated lettering for commercial projects across Sydney.

Based in North West Sydney, we regularly work with businesses, builders, shopfitters, architects, designers and commercial property teams on illuminated signage for offices, reception areas, retail premises, medical practices, hospitality venues and building exteriors.

Installation requirements are considered during the design stage because the substrate, access, electrical provision, mounting height and method of concealing wiring can all affect how illuminated lettering should be manufactured.

In many cases, yes. Custom illuminated lettering can be manufactured from supplied brand or vector artwork rather than restricting a business to standard fonts or pre-designed lettering.

Colour can be incorporated through materials, applied finishes, fabricated faces and illumination depending on the required result.

However, translating a two-dimensional logo into a three-dimensional illuminated object sometimes requires technical consideration. Very fine strokes, small counters, tight spacing or complex logo elements may need to be assessed to determine whether they can be fabricated and illuminated effectively at the proposed size.

Kellyville Signs assesses the original artwork and recommends a construction method that preserves the brand identity while ensuring the finished signage can be manufactured, illuminated and installed properly.

There is no single price for custom illuminated lettering because every project can involve a different combination of size, quantity, material, letter depth, fabrication method, LED configuration, finishing, mounting system, electrical requirements, access and installation.

For example, a small interior illuminated reception logo has very different fabrication and installation requirements from large exterior illuminated building letters installed at height.

The most useful way to obtain an accurate price is to provide Kellyville Signs with your logo or artwork, approximate dimensions, installation location and photographs or architectural drawings of the proposed wall or building. Click Here to Book Your Free Signage Design Consultation.

We can then recommend an appropriate illuminated lettering construction and quote the project based on what is actually required rather than giving a generic price that may not reflect the finished sign.
